How CNC Machine Works

Sep 02, 2020

A CNC machine is a computer controlled carving machine.

CNC= Computer Numeric Control.

In most cases a CNC machine is programmed by a programmer using CAM software who uses the software to apply tool paths to a 3D or 2D model of the part they want to make.

First the part program is inserted into the MCU of the CNC.

In MCU all the data process takes place and according to the program prepared, it prepares all the motion commands and sends it to the driving system.

The drive system works as the motion commands are send by MCU. Drive system controls the motion and velocity of the machine tool.

Feedback system, records the position and velocity measurement of the machine tool and sends a feedback signal to the MCU.

In MCU, the feedback signals are compared with the reference signals and if there are errors, it corrects it and sends new signals to the machine tool for the right operation to happen.

A display unit is used to see all the commands, programs and other important data. It acts as the eye of the machine.

CNC machine works like the Robot, which has to be fed with the program and it follows all your instructions.

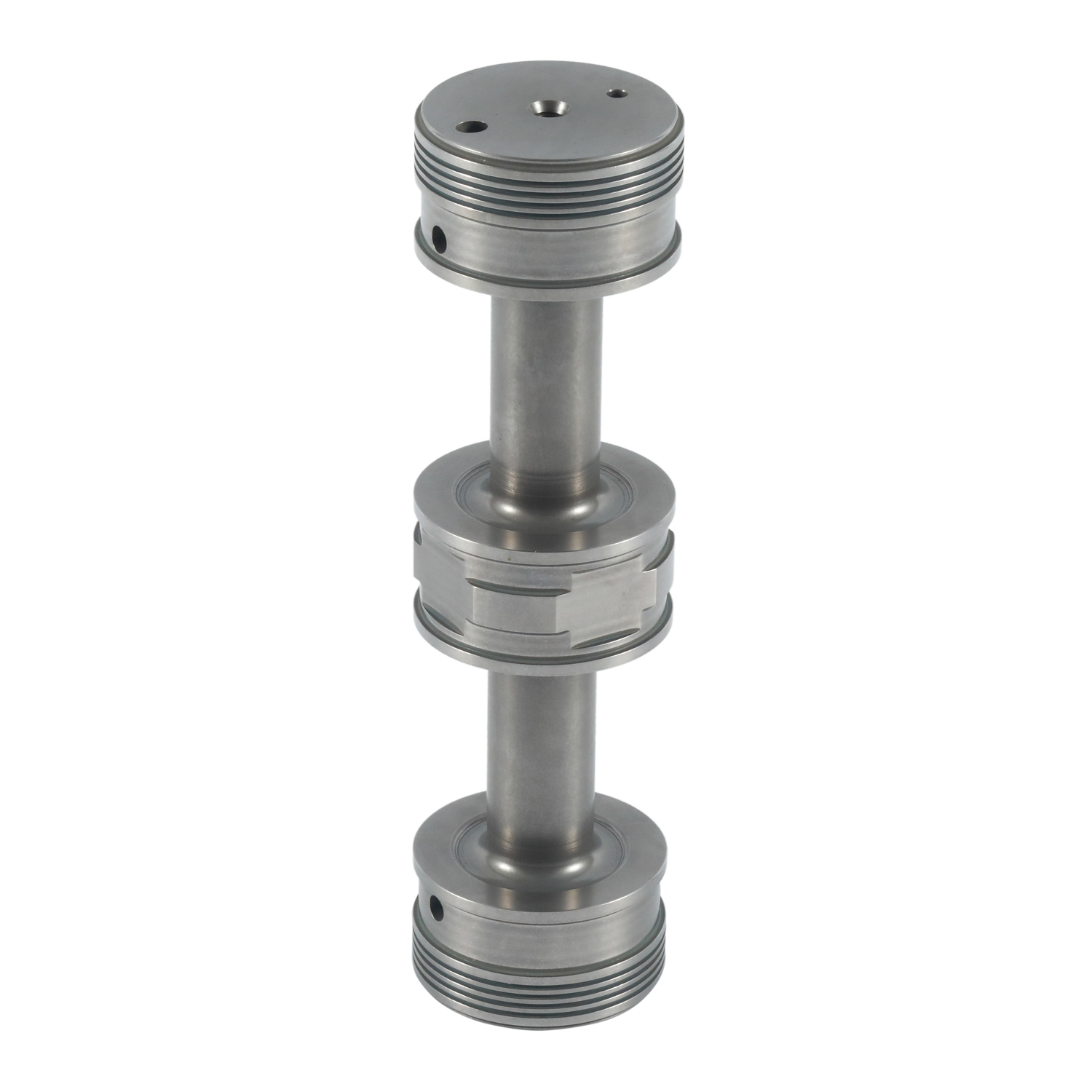

Click here to view CNC machined parts.

Equipment Capacity- CNC Machining Center


Equipment name: CNC Machining Center Equipment model: DNM655 System: FANUC Manufacturer: Doosan (Korea) Range of work: 1000500530 Accuracy: 0.0025 mm	Equipment name: CNC Machining Center Equipment model: DNM415 System: FANUC Manufacturer: Doosan (Korea) Range of work: 1000500530 Accuracy: 0.0025 mm


Equipment Capacity- Swiss-type Automatic Lathe

Equipment name: Swiss-type Automatic Lathe
Equipment model: STAR-20
System: FANUC
Manufacturer: STAR (Japan)
Range of work: ∮20*200(D*L)
Accuracy: 0.0025 mm

Equipment name: Swiss-type Automatic Lathe
Equipment model: A20
System: FANUC
Manufacturer: Citizen(Japan)
Range of work: ∮20*200(D*L)
Accuracy: 0.0025 mm


Equipment Capacity-CNC Lathe

Equipment name: CNC Lathe
Equipment model: Lynx225
System: FANUC
Manufacturer: Doosan (Korea)
Range of work: ∮200*500(D*L)
Accuracy: 0.005mm

Equipment name: CNC Lathe
Equipment model: S400
System: SYNTEC-21TA

Manufacturer: Gongtie

Range of work: ∮200*500(D*L)

Accuracy: 0.005mm

Equipment Capacity-Main Equipment List

Main Production Equipment List:

No.	Name	Model	QTY	Equipment Manufacturer	System	Spec./ Range of Work	Accuracy
1	CNC Machining Center	CMV920	1	Doosan (Korea)	FANUC	1000500530	0.0025mm
2	CNC Machining Center	DNM500	1	Doosan (Korea)	FANUC	1000500530	0.0025mm
3	CNC Machining Center	CMV435	2	Doosan (Korea)	FANUC	1000500530	0.0025mm
4	CNC Machining Center	850B	2	Jieyongda	FANUC	1000500530	0.0025mm
5	CNC Machining Center	V435	2	Doosan (Korea)	FANUC	1000500530	0.0025mm
6	CNC Machining Center	DNM655	1	Doosan (Korea)	FANUC	1000500530	0.0025mm
7	CNC Machining Center	DNM415	2	Doosan (Korea)	FANUC	1000500530	0.0025mm
8	CNC Machining Center	VM1370L	1	Yonglida	FANUC	726430510	0.01mm
9	Swiss-type Automatic Lathe	STAR-20	10	STAR (Japan)	FANUC	∮20200(DL)	0.0025mm
10	Swiss-type Automatic Lathe	A20	2	Citizen(Japan)	FANUC	∮20200(DL)	0.0025mm
11	CNC Lathe	Lynx225	4	Doosan (Korea)	FANUC	∮200500(DL)	0.005mm
12	CNC Lathe	Lynx235	4	Doosan (Korea)	FANUC	∮200500(DL)	0.005mm
13	CNC Lathe	GT-400	20	Gongtie	SYNTEC-6TA	∮200500(DL)	0.005mm
14	CNC Lathe	6136/6351A/3210S	52	Shanghai	GSK980TDb	∮200500(DL)	0.005mm
